ZC-S2012G

ZC-S2012G

2*GE(SFP)+10*GE(RJ45)
Nor Management
Work temperature -40～85℃
IP40 protection
DC or AC


￥ 0.00
0.00

Product Description

2*GE(SFP)+10*GE(RJ45)
Nor Management
Work temperature -40～85℃
IP40 protection
DC or AC

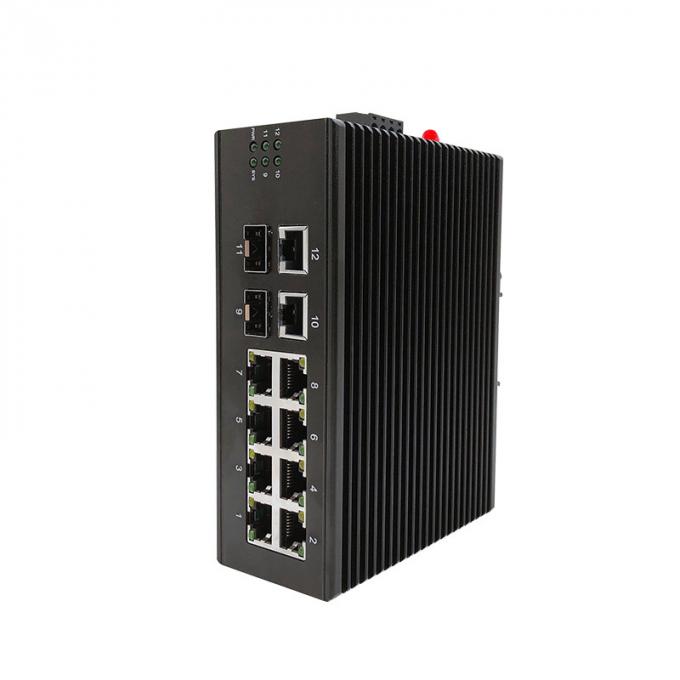

ZIKUN Gigabit Managed Ethernet Industrial Poe Switch 12 Port Din Rail For Ip Camera Dual Dc Input

ZC-S2012G is an industrial grade gigabit PoE switch designed for industrial environment. 10 Gigabit adaptive Ethernet interfaces are provided. It provides rich and intelligent management function,supports management via Web interface. There are remote PoE power restart function. when the load equipment fails and crashes, the equipment can be restarted through remote operation (Web-UI).


Model Feature

ModelZC-S2006GZC-S2010TGZC-S2010GZC-S2012G
Gigabit optical port(GE SFP)2122
Gigabit electrical por(GE RJ-45)49810
Input voltage DC(V)12-5812-5812-5812-58
Power consumption(W)<6<6<6<6
Weight(kg)0.50.50.50.58
Dimensions(mm)143X105X53

IP Camera Gigabit Industrial Managed Poe Switch 12 Port Din Rail Ethernet Switch 0

Specifications


Provider Mode Ports
Power interfacePhoenix terminal
LED IndicatorsPWR,SYS,Optical port indication

Cable type&Transmission distance
Twisted-pair0-100m(CAT5e,CAT6)
Monomode optical fiber20/40/60/80/100KM
Multimode optical fiber550m

Electrical Specifications
input voltageDC12-58V

Layer 2 Switching
Switching capacity12G
Packet forwarding rate7.44Mpps
MAC address table4K
Buffer1M
Forwarding delay<10us
MDX/MIDXSupport
Flow controlSupport
Jumbo FrameSupport 9.6Kbytes

Environment Condition
Operating temperature-40℃~+85℃
Storage/transport temperature-40℃~+85℃
Relative humidity5%~95% non-condensing
Thermal methodsFanless design, natural heat dissipation

Mechanical Dimensions
Installation MethodClamp rail installation, hanging ear installation

EMC&INGRESS PROTECTION
IP LevelIP40
Surge protection of PowerIEC 61000-4-5 Level X(6KV/4KV)(8/20us)
Surge protection of Ethernet portIEC 61000-4-5 Level 4(4KV/4KV)(10/700us)
ESDIEC 61000-4-2 Level 4 (8K/15K)

Authentication
AuthenticationMinistry of Public Security,CCC/CE/FCC/RoHS

Accessories
AccessoriesEquipment, terminals, certificate, manual, power adapter (optional)
