ZC-S2006G

ZC-S2006G

1*GE(SFP)+5*GE(RJ45)
Nor Management
Work temperature -40~85℃
IP40 protection
DC or AC

0.00
0.00

Product Description

1*GE(SFP)+5*GE(RJ45)
Nor Management
Work temperature -40~85℃
IP40 protection
DC or AC

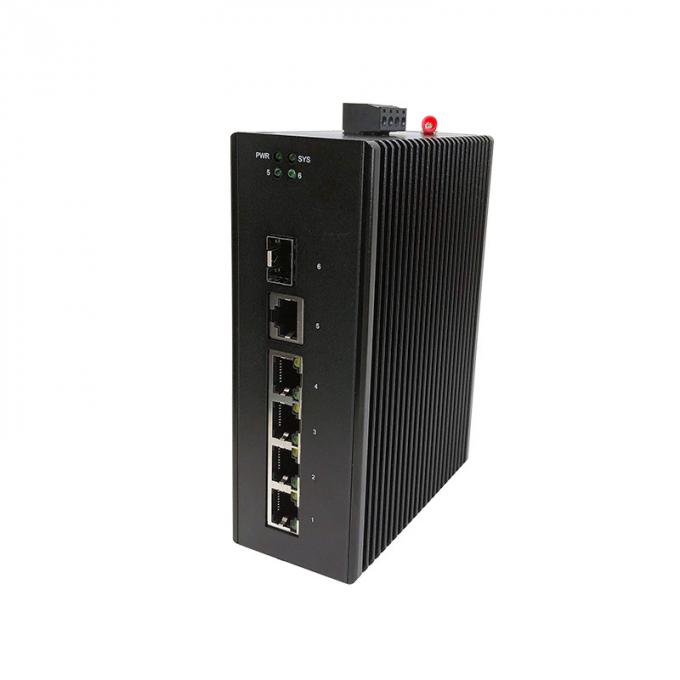

ZIKUN ZC-S2006G 6 Ports 10/100/1000M Nor Managed Industrial Ethernet Switch


Model Feature

ModelZC-S2006GZC-S2010TGZC-S2010GZC-S2012G
Gigabit optical port(GE SFP)2122
Gigabit electrical por(GE RJ-45)49810
Input voltage DC(V)12-5812-5812-5812-58
Power consumption(W)<6<6<6<6
Weight(kg)0.50.50.50.58
Dimensions(mm)143X105X53

6 Ports Unmanaged Industrial Ethernet Switch 20/40/60/80/100KM ZC-S2006G 0

Specifications


Provider Mode Ports
Power interfacePhoenix terminal
LED IndicatorsPWR,SYS,Optical port indication

Cable type&Transmission distance
Twisted-pair0-100m(CAT5e,CAT6)
Monomode optical fiber20/40/60/80/100KM
Multimode optical fiber550m

Electrical Specifications
input voltageDC12-58V

Layer 2 Switching
Switching capacity12G
Packet forwarding rate7.44Mpps
MAC address table4K
Buffer1M
Forwarding delay<10us
MDX/MIDXSupport
Flow controlSupport
Jumbo FrameSupport 9.6Kbytes

Environment Condition
Operating temperature-40℃~+85℃
Storage/transport temperature-40℃~+85℃
Relative humidity5%~95% non-condensing
Thermal methodsFanless design, natural heat dissipation

Mechanical Dimensions
Installation MethodClamp rail installation, hanging ear installation

EMC&INGRESS PROTECTION
IP LevelIP40
Surge protection of PowerIEC 61000-4-5 Level X(6KV/4KV)(8/20us)
Surge protection of Ethernet portIEC 61000-4-5 Level 4(4KV/4KV)(10/700us)
ESDIEC 61000-4-2 Level 4 (8K/15K)

Authentication
AuthenticationMinistry of Public Security,CCC/CE/FCC/RoHS

Accessories
AccessoriesEquipment, terminals, certificate, manual, power adapter (optional)
