Optical port

GPON/EPON mode adaptive

ITU-T G.984 GPON standards，Support for backward compatibility with IEEE 802.3ah EPON

Single mode fiber

Optical connector

SC/APC

Receiving Sensitivity

-28dBm；CATV Optical Receiver（1550nm）：-18dBm

Overload optical power

-8 dBm；CATV Optical Receiver（1550nm）：+2dBm

Transmitting Optical Power

0.5~5dBm

Transmit rate

GPON:2.488Gbps downstream; 1.244Gbps upstream

EPON:1.25Gbps downstream；1.25Gbps upstream

Wavelength

Receiving（DOWN）:1490nm；Transmitting（UP）:1310nm

Third party wavelength（CATV Optical Receiver）:1550nm

Authentication

SN /Password/LOID/LOID+Password authentication defined in G.984.3;MAC authentication

WDM

1490/1310nm+1550nm

AGC

-12~+2dBm

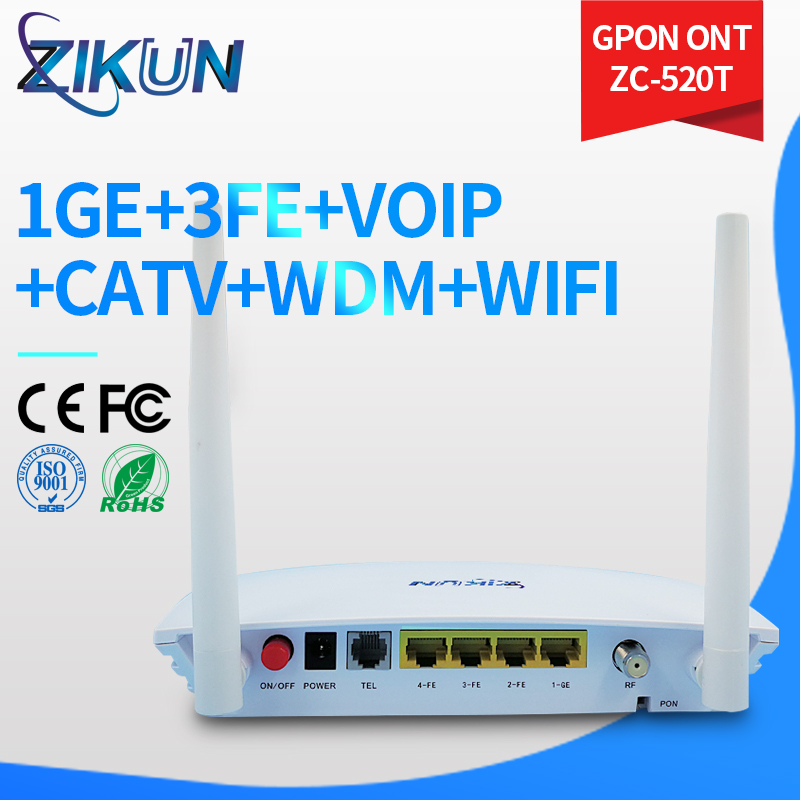

User Network Interface（UNI）：1GE+3FE+1POTS+1CATV+WIFI+1USB

Ethernet Port

• Ethernet port-based VLAN tags and tag removal

• VLAN transparent and aggregation

• MAC address learning

• Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s

POTS Port

• SIP/H.248

• Call waiting, Inconditional Call Forward, Call Forward if Busy,Call Forward if no reply and Three-party calls.

• G.711A/U, G.729 and G.722 encoding/decoding

• SDP protocol (RFC 2327 and RFC 4566)

• T.30/T.38/G.711 fax mode

• DTMF

WLAN

• IEEE 802.11 b/g/n

• 2 × 2 MIMO

• Antenna gain: 5 dBi，two external antenna

• Air interface rate:300 Mbit/s

• WPS

• Multiple SSIDs

CATV Port

• CATV Interfce：RF output，－5 Male F-Type Connector

• RF frequency：47MHz~1000MHz

• RF output lever：76±2dBuV (AGC: @-12~+2dBm)

• RF output return loss：>14dB

• MER：≥31dB

• RF impedance：75Ω

USB port

• USB2.0

• FTP-based network storage

• File/Print sharing based on SAMBA

• DLNA DMS/UPnP AV (media server）

Product Function

GPON

• ITU-T G.984.1-4

• ITU-T G.988

• 32 TCONTs /256GEM ports

• 8 Egress queues per TCONT at least

• VLAN or VLAN plus priority gem mapping mode

• Performance monitoring: eth/Gem port

• Dying gasp

Layer 2 Features

• MAC learning (SVL)/aging

• Support max frame length to 1518 bytes

• VLAN tagging for untagged packets

• Support VLAN 1-4094

• VLAN transparent/translation

Layer 3 Features

• PPPoE/Static IP/DHCP/Bridge

• NAT/NAPT

• Port forwarding

• ALG, UPnP

• DDNS/DNS server/DNS client

• IPv6/IPv4 dual stack,and DS-Lite

• Static/Default routes

• Multiple services on one WAN port

• RIPv2 with passive mode

Multicast

• IGMP v2 (RFC 2236) and IGMP v3 (RFC 3376)

• IGMP snooping and IGMP Proxy

• MLD v1/v2

Qos

• Support 8 Queues with Strict Priority

• Ethernet port rate limitation

• 802.1ppriority

• SP/WRR/SP+WRR

• Service flow classification

Security

• Firewall

• MAC/Port/URL Filter

Management

• OMCI/OAM/TR069

• Web UI（Http by LAN-Side and WAN-Side）

• Telnet（Telnet by LAN-Side and WAN-Side）

• Manage the CATV RF Port in OLT（Disablel/Enable the CATV RF Port）

• SSH management with CLI commands

• Dual-system software backup and rollback

Physical Performance

Dimensions ( W x Dx H)

18.5CM*12.6CM*3.6CM(without external antenna and pads)

Weight

About 400g

Working temperature

0°C ~ 45°C

Working humidity

5% RH to 95% RH (non-condensing)

Power adapter input

100–240 V AC, 50 / 60 Hz

System power supply

12V DC, 1 A

Power consumption

<10W

System Configuration

Main Chip

ZTE ZXIC ZX279127S, 1000Mhz

RAM

256MB DDR3

Flash

128MB NAND

WiFi Chip

MTK MT7603EN
