ZC-S2006P

  • •  6-Port gigabit cloud managed switch with 4 PoE+ ports

  • •  Cost-Effective Smart Cloud Managed Switches

  • •  IP Camera Recognition, Unique Value for CCTV Network

  • •  Automatic Loop Prevention Ensures Service Continuity

  • •  Lifetime management on Zikun Cloud at anytime anywhere


￥ 0.00
0.00

Product Description

  • •  6-Port gigabit cloud managed switch with 4 PoE+ ports

  • •  Cost-Effective Smart Cloud Managed Switches

  • •  IP Camera Recognition, Unique Value for CCTV Network

  • •  Automatic Loop Prevention Ensures Service Continuity

  • •  Lifetime management on Zikun Cloud at anytime anywhere

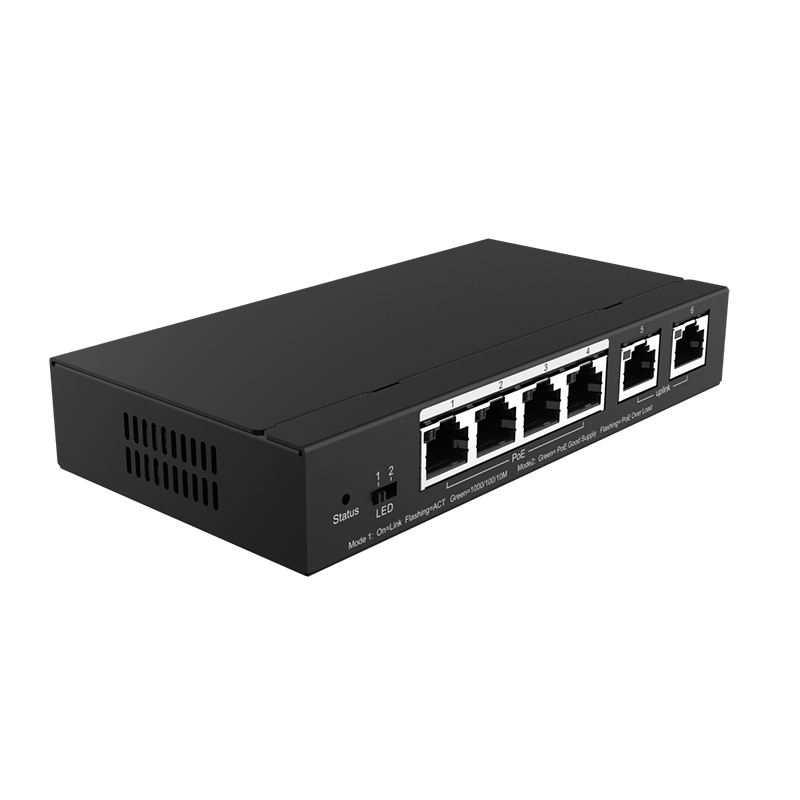

Zikun ZC-S2006P 6-Port Gigabit Smart Cloud Mananged PoE Switch

Widely used in Enterprise, Hospitality, Factory, Education, Retails, Surveillance, etc.


Highlight Features

  • 6-Port gigabit cloud managed switch with 4 PoE+ ports

  • Cost-Effective Smart Cloud Managed Switches

  • IP Camera Recognition, Unique Value for CCTV Network

  • Automatic Loop Prevention Ensures Service Continuity

  • Lifetime management on Zikun Cloud at anytime anywhere


54W 12 Gbps Smart Managed Poe Switch ZC-S2006P 6 Port Gigabit Switch 0

Key Specification

Ports6 x 10/100/1000Base-T, 4 x PoE+ portsPoE54W, IEEE 802.3at / IEEE 802.3af
Switching capacity12 GbpsForwarding rate7.44 Mpps
MAC address table2000Maximum VLAN16
FanFanlessPort surge4 kV
Dimensions (W x D x H)148 mm x 78 mm x 26 mmWeight (With package)0.79 kg
MTBF> 200,000Warranty3 Years


Model
ZC-S2005P
ZC-S2006P
ZC-S2009P
ZC-S2010P
ZC-2018P
ZC-S2026P
10/100/1000Base-T ports
5
6
9
10
16
24
1000Base-X SFP ports
NON
NON
NON
NON
2

  2

PoE ports
4
4
8
8
16
24
Max. PoE budget
54W
54W
120W
70W
240W
370W
Switching capacity
10 Gbps
12 Gbps
18 Gbps
20 Gbps
36 Gbps
52 Gbps
Forwarding rate
7.44 Mpps
8.93 Mpps
13.39 Mpps
14.88 Mpps
26.78 Mpps
38.69 Mpps
MAC address table
2000
4000
4000
4000
8000
8000
VLAN
16
16
16
16
16
16
Weight (With package)
0.9 kg
0.79 kg
1.3 kg
1.38 kg
3.5 kg
4.2 kg
